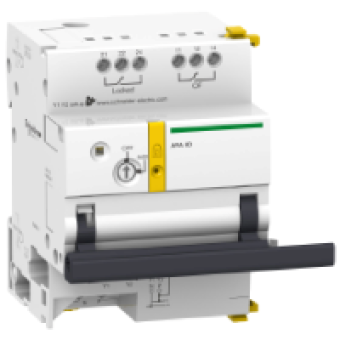

A9C70342 - Acti 9 - ARA auto recloser aux for iID 2P - 1 Prog, Schneider Electric
- Product Code: A9C70342
- Brand: Schneider Electric
- Availability: To be confirmed
- € 164.52 Ex Tax:
MAIN CHARACTERISTICS
range of product
IID
range of product
ACTI 9
product or component type
AUTOMATIC RECLOSER AUXILIARY
device short name
ARA IID
signal contacts composition
2 OF VOLT-FREE CONTACTS
signalling circuit voltage
24 V 10 mA AC/DC
COMPLEMETARY CHARACTERISTICS
control type
INHIBITION OF AUTOMATISM MAINTAINED 230 V AC 5060 HZ
input current
5 MA
impulse duration
>= 200 MS CONTROL CIRCUIT
[Us] rated supply voltage
230 V AC 5060 HZ
[Ui] rated insulation voltage
400 V
[Uimp] rated impulse withstand voltage
6 KV
value of setting
PROGRAM 1 15 RECLOSING ATTEMPS LONG FIXED CYCLE
local signalling
flashing orange LED : not operational
mounting mode
CLIP-ON
mounting support
DIN RAIL
comb busbar and distribution block compatibility
NO
9 mm pitches
7
height
93 MM
width
63 MM
depth
75.5 MM
product weight
440 G
colour
WHITE
electrical durability
5000 CYCLES
provision for padlocking
PADLOCKABLE
locking options description
PADLOCKING IN OFF POSITION
connections - terminals
tunnel type terminals power supply : 0.5...10 mm², rigid without cable end
wire stripping length
power supply : 10 mm (bottom)
tightening torque
power supply : 1 N.m
range compatibility
ACTI 9 ACTI 9 IID RESIDUAL CURRENT CIRCUIT BREAKER RCCB
product compatibility
IID 2P
