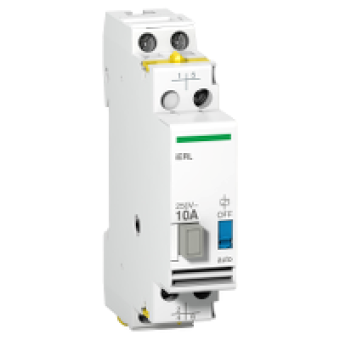

A9E15539 - Changeover relay extension iERL 10A 2P Uc 230V-240VAC Ue 250VAC , Schneider Electric
- Product Code: A9E15539
- Brand: Schneider Electric
- Availability: To be confirmed
- € 24.38 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
product name
ACTI 9 IERL
product or component type
EXTENSION FOR CHANGEOVER RELAY
device short name
IERL
device application
EXTENSION FOR CHANGEOVER RELAY
signal contacts composition
1 C O + 1 NO
[Uc] control circuit voltage
230..240 V AC 5060 HZ
COMPLEMETARY CHARACTERISTICS
[Ie] rated operational current
10 A AT 230 V AC COS PHI = 1
[Ui] rated insulation voltage
250 V AC
supply holding power
8 VA
supply inrush power
8 VA
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
9 mm pitches
2
height
88 MM
width
18 MM
depth
70 MM
product weight
0.112 KG
colour
WHITE
electrical durability
AC-21 : 100000 cycles
connections - terminals
TUNNEL TYPE TERMINALS 0.5...6 MM
market segment
RESIDENTIAL
compatibility code
IERL
