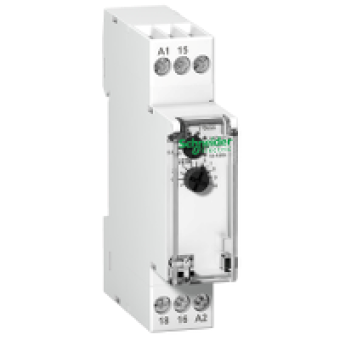

A9E16065 - iRTA relay - delays energizing of a load-1C/O - Uc 24-240 VAC/24VDC, Schneider Electric
- Product Code: A9E16065
- Brand: Schneider Electric
- Availability: To be confirmed
- € 42.02 Ex Tax:
MAIN CHARACTERISTICS
relay application
TIME DELAY RELAY
time delay type
DELAYS ENERGIZING OF A LOAD
range
ACTI 9
product name
IRT
product or component type
RELAY
device short name
IRTA
signal contacts composition
1 C O
COMPLEMETARY CHARACTERISTICS
[Ie] rated operational current
8 A AC 250 V
impulse duration
> 100 MS
local signalling
LED flashing time delay
type of setting
TIME DELAY CONFIGURATION BY ROTARY KNOB
time delay range
0.1...360000 S
accuracy error
+ -10 PT
repeat accuracy
+ -0.5 PT
[Uc] control circuit voltage
24..240 V AC 5060 HZ
[Us] rated supply voltage
24..240 V AC 5060 HZ
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
9 mm pitches
2
height
93 MM
width
18 MM
depth
72 MM
product weight
0.065 KG
colour
WHITE
mechanical durability
>= 5000000 CYCLES
electrical durability
AC-1 : >= 100000 cycles
undervoltage behaviour
100 MS
connections - terminals
TUNNEL TYPE TERMINALS 2 CABLES 1.5 MM FLEXIBLE WITH CABLE END
market segment
RESIDENTIAL
compatibility code
IRTA
