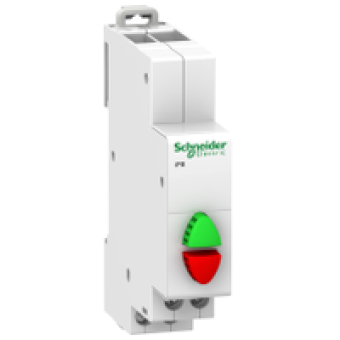

A9E18034 - Acti9 iPB 1NO-1NC double push button green/red, Schneider Electric
- Product Code: A9E18034
- Brand: Schneider Electric
- Availability: To be confirmed
- € 9.13 Ex Tax:
MAIN CHARACTERISTICS
range of product
IPB
range of product
ACTI 9
product name
ACTI 9 IPB
product or component type
PUSHBUTTON
device short name
IPB
standards
IEC 60669-1
COMPLEMETARY CHARACTERISTICS
contacts type and composition
1 NC
[Ie] rated operational current
20 A
[Ue] rated operational voltage
250 V AC
control type
2 PUSH-BUTTON GREENRED
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
comb busbar and distribution block compatibility
upside : Clario
9 mm pitches
2
height
82 MM
width
18 MM
depth
71.5 MM
colour
WHITE
electrical durability
AC-22 : 30000 cycles AC 50/60 Hz
connections - terminals
STAGGERED TUNNEL TERMINAL 1 CABLE S 0.5 MM RIGID
wire stripping length
9 MM
tightening torque
1 N.M
compatibility code
IPB
market segment
RESIDENTIAL
The Schneider Electric A9E18034 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
