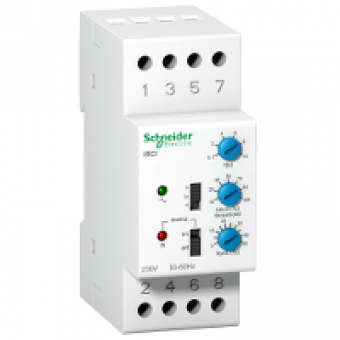

A9E21181 - current control relay iRCI - 8 A - 230 V 50/60Hz - 1 OC, Schneider Electric
- Product Code: A9E21181
- Brand: Schneider Electric
- Availability: To be confirmed
- € 117.71 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
product name
ACTI 9 IRC
product or component type
CONTROL RELAY
device short name
IRCI
device application
CURRENT CONTROL RELAY
signal contacts composition
1 C O
COMPLEMETARY CHARACTERISTICS
[Ie] rated operational current
8 A UNDER 250 V AC COS PHI = 1
local signalling
GREEN LED FOR POWER ON
type of setting
MEASUREMENT RANGE BY SELECTED BY WIRING
tripping threshold
10..100 PT
analogue input range
0.15..1.5 A AC
hysteresis
5...50
time delay range
0.1...10 S
accuracy error
+ -10 PT
[Us] rated supply voltage
230 V AC 5060 HZ
power consumption in VA
3 VA
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
9 mm pitches
4
height
88.1 MM
width
36 MM
depth
67 MM
product weight
0.215 KG
colour
WHITE
connections - terminals
TUNNEL TYPE TERMINALS 6 WIRE S RIGID 1.5 MM MAX
market segment
RESIDENTIAL
compatibility code
IRCI
