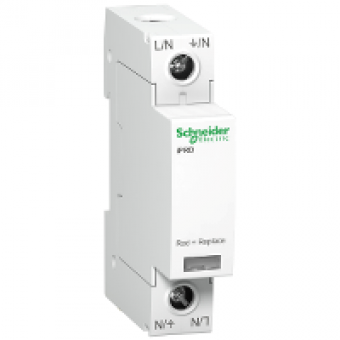

A9L08100 - iPRD8 modular surge arrester - 1P - 350V, Schneider Electric
- Product Code: A9L08100
- Brand: Schneider Electric
- Availability: To be confirmed
- € 22.57 Ex Tax:
MAIN CHARACTERISTICS
range of product
IPRD
range of product
ACTI 9
product name
ACTI 9 IPRD
product or component type
SURGE ARRESTER PLUGGABLE CTRG
device short name
IPRD8
device application
DISTRIBUTION
poles description
1P
remote signalling
WITHOUT
surge arrester type
ELEC DISTRIBUTION NETWORK
earthing system
TN-C
[Uoc] open circuit voltage
10 KV TYPE 3 COMMON MODE LPE
COMPLEMETARY CHARACTERISTICS
surge arrester class type
TYPE 2 + 3
surge arrester technology
MOV
[Ue] rated operational voltage
230 V (+/- 10 %) AC 50/60 Hz
[In] nominal discharge current
common mode : 2.5 kA L/PE
[Imax] maximum discharge current
common mode : 8 kA L/PE
[Uc] maximum continuous operating voltage
common mode : 350 V L/PE
[Up] voltage protection level
1 KV TYPE 2 COMMON MODE LPE
[Ut] temporary overvoltage
withstand : 337 V L/N for 5 s
disconnector device type
ASSOCIATED CIRCUIT BREAKER IC60L 10 A CURVE C - ICU 25 KA
[Isccr] short-circuit current rating
50 KA
local signalling
FLAG COLOR WHITERED
mounting mode
CLIP-ON
mounting support
DIN RAIL
9 mm pitches
2
height
85 MM
width
18 MM
depth
69 MM
product weight
0.11 KG
colour
WHITE RAL 9003
response time
<= 25 NS
[Ipe] Ground residual current
0.6 MA
connections - terminals
TUNNEL TYPE TERMINAL DOWNSIDE 2.5...35 MM
tightening torque
2.5 N.M
compatibility code
IPRD8
