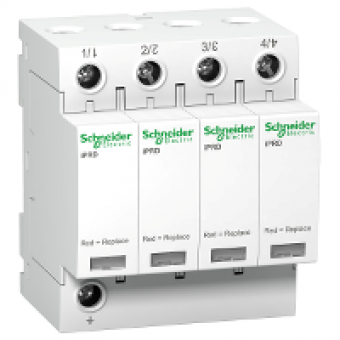

A9L08421 - iPRD8r modular surge arrester - 4P - IT - 460V - with remote transfert, Schneider Electric
- Product Code: A9L08421
- Brand: Schneider Electric
- Availability: To be confirmed
- € 92.27 Ex Tax:
MAIN CHARACTERISTICS
range of product
IPRD
range of product
ACTI 9
product name
ACTI 9 IPRD
product or component type
SURGE ARRESTER PLUGGABLE CTRG
device short name
IPRD8R
device application
DISTRIBUTION
poles description
4P
remote signalling
WITH
signal contacts composition
1 SD 1 C O
surge arrester type
ELEC DISTRIBUTION NETWORK
earthing system
IT
COMPLEMETARY CHARACTERISTICS
surge arrester class type
TYPE 2 + 3
surge arrester technology
MOV
[Ue] rated operational voltage
230 400 V + - 10 AC 50 60 HZ
[In] nominal discharge current
common mode : 2.5 kA L/PE
[Imax] maximum discharge current
common mode : 8 kA L/PE
[Uc] maximum continuous operating voltage
common mode : 460 V L/PE
[Up] voltage protection level
1.6 KV TYPE 2 COMMON MODE LPE
[Ut] temporary overvoltage
withstand : 337 V L/N for 5 s
disconnector device type
ASSOCIATED CIRCUIT BREAKER IC60L 10 A CURVE C - ICU 25 KA
[Isccr] short-circuit current rating : double fault
5 KA 415 V PHPH
local signalling
FLAG COLOR WHITERED
signalling circuit voltage
0.25 A 250 V AC 50 60 HZ
mounting mode
CLIP-ON
mounting support
DIN RAIL
9 mm pitches
8
height
85 MM
width
72 MM
depth
69 MM
product weight
450 G
colour
WHITE RAL 9003
response time
<= 25 NS
[Ipe] Ground residual current
0.6 MA
connections - terminals
TUNNEL TYPE TERMINAL TOP OR BOTTOM 2.5...25 MM CABLE S RIGID
tightening torque
3.5 N.M
targeted country
ALL
compatibility code
IPRD8R
