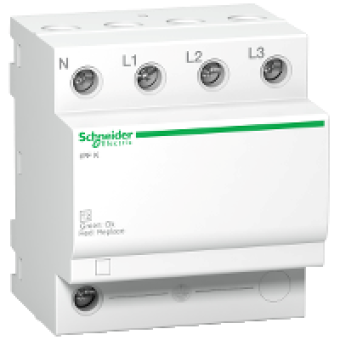

A9L15693 - iPF K 20 modular surge arrester - 3 poles + N - 340V, Schneider Electric
- Product Code: A9L15693
- Brand: Schneider Electric
- Availability: To be confirmed
- € 56.72 Ex Tax:
MAIN CHARACTERISTICS
range of product
IPF K
range of product
ACTI 9
product name
ACTI 9 IPF K
product or component type
SURGE ARRESTER
device short name
IPF K
device application
DISTRIBUTION
poles description
3P+N
remote signalling
WITHOUT
surge arrester type
ELEC DISTRIBUTION NETWORK
earthing system
TN-S
COMPLEMETARY CHARACTERISTICS
surge arrester class type
TYPE 2
surge arrester technology
MOV + GDT
[Ue] rated operational voltage
230 400 V + - 10 AC 50 60 HZ
[In] nominal discharge current
common mode : 5 kA L/PE
[Imax] maximum discharge current
common mode : 20 kA L/PE
[Uc] maximum continuous operating voltage
common mode : 340 V L/PE
[Up] voltage protection level
1.5 KV TYPE 2 COMMON MODE NPE
[Ut] temporary overvoltage
withstand : 337 V L/N for 5 s
disconnector device type
ASSOCIATED CIRCUIT BREAKER IK60N 20 A CURVE C - ICU 6 KA
[Isccr] short-circuit current rating
25 KA
local signalling
LED COLOR GREENRED
signalling circuit voltage
0.25 A 250 V AC 50 60 HZ
mounting mode
CLIP-ON
mounting support
DIN RAIL
9 mm pitches
8
height
81 MM
width
72 MM
depth
69 MM
product weight
420 G
colour
WHITE RAL 9003
response time
<= 25 NS
[Ipe] Ground residual current
0.003 MA
connections - terminals
TUNNEL TYPE TERMINAL TOP OR BOTTOM 25 MM CABLE S RIGID
wire stripping length
11 MM
tightening torque
3.5 N.M
compatibility code
IPF K 20
