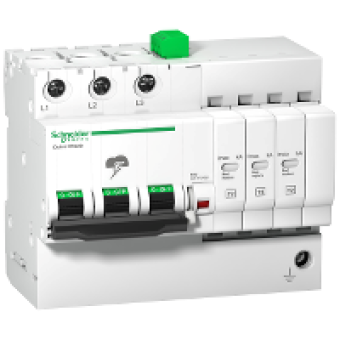

A9L16293 - iQuick PRD40r modular surge arrester - 3 poles - 350V - with remote transfer, Schneider Electric
- Product Code: A9L16293
- Brand: Schneider Electric
- Availability: To be confirmed
- € 146.15 Ex Tax:
MAIN CHARACTERISTICS
range of product
IQUICK PRD
range of product
ACTI 9
product name
ACTI 9 IQUICK PRD
product or component type
SURGE ARRESTER PLUGGABLE CTRG
device short name
IQUICK PRD
device application
DISTRIBUTION
poles description
3P
remote signalling
WITH
signal contacts composition
1 SD 1 C O
surge arrester type
ELEC DISTRIBUTION NETWORK
earthing system
IT 230
COMPLEMETARY CHARACTERISTICS
surge arrester class type
TYPE 2
surge arrester technology
MOV
[Ue] rated operational voltage
230 V (+/- 10 %) AC 50/60 Hz
[In] nominal discharge current
common mode : 20 kA L/PE
[Imax] maximum discharge current
common mode : 40 kA L/PE
[Uc] maximum continuous operating voltage
common mode : 350 V L/PE
[Up] voltage protection level
2 KV TYPE 2 COMMON MODE LPE
disconnector device type
INTEGRATED CIRCUIT BREAKER - ICU 20 KA
[Isccr] short-circuit current rating
25 KA
local signalling
FLAG COLOR WHITERED
signalling circuit voltage
2 A 250 V AC 50 60 HZ
mounting mode
CLIP-ON
mounting support
DIN RAIL
9 mm pitches
12.7
height
94 MM
width
113.6 MM
depth
75.9 MM
product weight
0.69 KG
colour
WHITE RAL 9003
response time
<= 25 NS
connections - terminals
TUNNEL TYPE TERMINAL UPSIDE 2.5...35 MM
tightening torque
2.5 N.M
compatibility code
IQUICK PRD40R
