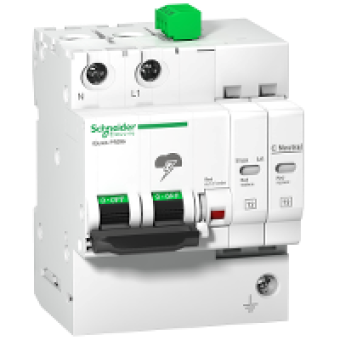

A9L16295 - iQuick PRD20r modular surge arrester - 1 pole + N - 350V - with remote transfer, Schneider Electric
- Product Code: A9L16295
- Brand: Schneider Electric
- Availability: To be confirmed
- € 86.29 Ex Tax:
MAIN CHARACTERISTICS
range of product
IQUICK PRD
range of product
ACTI 9
product name
ACTI 9 IQUICK PRD
product or component type
SURGE ARRESTER PLUGGABLE CTRG
device short name
IQUICK PRD20R
device application
DISTRIBUTION
poles description
1P+N
remote signalling
WITH
signal contacts composition
1 SD 1 C O
surge arrester type
ELEC DISTRIBUTION NETWORK
earthing system
TN-S
COMPLEMETARY CHARACTERISTICS
surge arrester class type
TYPE 2
surge arrester technology
MOV + GDT
[Ue] rated operational voltage
230 V (+/- 10 %) AC 50/60 Hz
[In] nominal discharge current
common mode : 5 kA L/PE
[Imax] maximum discharge current
common mode : 20 kA L/PE
[Uc] maximum continuous operating voltage
common mode : 264 V N/PE
[Up] voltage protection level
1.7 KV TYPE 2 COMMON MODE N PE
[Ut] temporary overvoltage
WITHSTAND 1200 V NPE FOR 200 MS
disconnector device type
INTEGRATED CIRCUIT BREAKER - ICU 25 KA
[Isccr] short-circuit current rating
25 KA
[Isccr] short-circuit current rating : double fault
25 KA
local signalling
FLAG COLOR WHITERED
signalling circuit voltage
2 A 250 V AC 50 60 HZ
mounting mode
CLIP-ON
mounting support
DIN RAIL
9 mm pitches
8
height
91.4 MM
width
72 MM
depth
75.9 MM
product weight
435 G
colour
WHITE RAL 9003
response time
<= 25 NS
[Ipe] Ground residual current
<= 1 MA
connections - terminals
TUNNEL TYPE TERMINAL L N 2.5...25 MM CABLE S RIGID
wire stripping length
11 MM
tightening torque
2.5 N.M
compatibility code
IQUICK PRD20R
