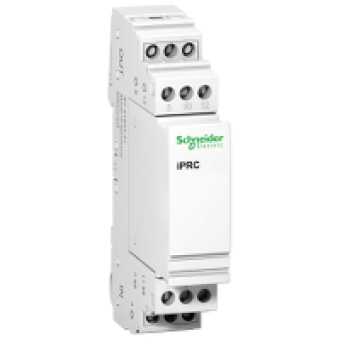

A9L16337 - iPRC - 2 poles - 0.45 A - 130 V AC, Schneider Electric
- Product Code: A9L16337
- Brand: Schneider Electric
- Availability: To be confirmed
- € 73.73 Ex Tax:
MAIN CHARACTERISTICS
range of product
IPRC
range of product
ACTI 9
product name
ACTI 9 IPRC
device short name
IPRC
product or component type
SURGE ARRESTER
poles description
2 LINES
surge arrester type
TELECOM PROTECTION
COMPLEMETARY CHARACTERISTICS
remote signalling
WITHOUT
surge arrester technology
GDT + DIODE
[In] rated current
0.45 A UP TO 45 C
[Ue] rated operational voltage
130 V AC
nominal discharge current
common mode : 10 kA L/PE
[Iimp] impulse current
100 A
[Uc] maximum continuous operating voltage
common mode : 130 V AC L/PE
[Up] voltage protection level
160 V TYPE 2 DIFFERENTIAL MODE LN
output voltage limits
common mode : < 300 V at 1 kV/µs
[I total] discharge current
10 KA
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
9 mm pitches
2
height
90 MM
width
18 MM
depth
66 MM
product weight
25 G
colour
WHITE
material
PA6
response time
< 500 NS
connections - terminals
SCREW CLAMP TERMINAL 0.2...4 MM RIGID
wire stripping length
8 MM
tightening torque
0.8 N.M
compatibility code
IPRC
