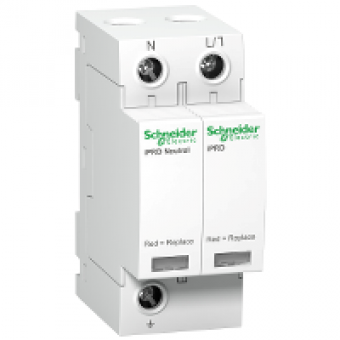

A9L20500 - iPRD20 modular surge arrester - 1P + N - 350V, Schneider Electric
- Product Code: A9L20500
- Brand: Schneider Electric
- Availability: To be confirmed
- € 36.33 Ex Tax:
MAIN CHARACTERISTICS
range of product
IPRD
range of product
ACTI 9
product name
ACTI 9 IPRD
product or component type
SURGE ARRESTER PLUGGABLE CTRG
device short name
IPRD20
device application
DISTRIBUTION
poles description
1P+N
remote signalling
WITHOUT
surge arrester type
ELEC DISTRIBUTION NETWORK
earthing system
TN-S
COMPLEMETARY CHARACTERISTICS
surge arrester class type
TYPE 2
surge arrester technology
MOV + GDT
[Ue] rated operational voltage
230 V (+/- 10 %) AC 50/60 Hz
[In] nominal discharge current
common mode : 5 kA L/PE
[Imax] maximum discharge current
common mode : 20 kA L/PE
[Uc] maximum continuous operating voltage
common mode : 260 V N/PE
[Up] voltage protection level
1.1 KV TYPE 2 DIFFERENTIAL MODE LN
[Ut] temporary overvoltage
withstand : 337 V L/N for 5 s
disconnector device type
ASSOCIATED CIRCUIT BREAKER IC60N 20 A CURVE C - ICU 10 KA
[Isccr] short-circuit current rating
50 KA
local signalling
FLAG COLOR WHITERED
mounting mode
CLIP-ON
mounting support
DIN RAIL
9 mm pitches
4
height
85 MM
width
36 MM
depth
69 MM
product weight
0.211 KG
colour
WHITE RAL 9003
response time
<= 25 NS
[Ipe] Ground residual current
0.6 MA
connections - terminals
TUNNEL TYPE TERMINAL DOWNSIDE 2.5...35 MM
tightening torque
2.5 N.M
compatibility code
IPRD20
