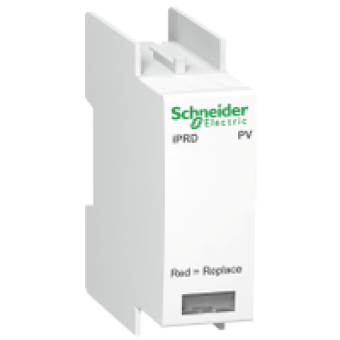

A9L40182 - cartridge C40-1000 PV for surge arrester iPRD-DC, Schneider Electric
- Product Code: A9L40182
- Brand: Schneider Electric
- Availability: To be confirmed
- € 28.70 Ex Tax:
MAIN CHARACTERISTICS
range of product
IPRD DC
product or component type
CARTRIDGE
device short name
C40 1000 PV
surge arrester type
ELEC DISTRIBUTION NETWORK
COMPLEMETARY CHARACTERISTICS
surge arrester class type
TYPE 2
surge arrester technology
MOV
[Ue] rated operational voltage
1000 V DC
nominal discharge current
15 KA
maximum discharge current
40 KA
[Uc] maximum continuous operating voltage
460 V
[Up] voltage protection level
2 KV TYPE 2
local signalling
FLAG COLOR WHITERED
mounting mode
PLUG IN
mounting support
INTO SPD MODULE
9 mm pitches
2
height
57 MM
width
18 MM
depth
56 MM
colour
WHITE RAL 9003
material
PBT
response time
< 25 NS
