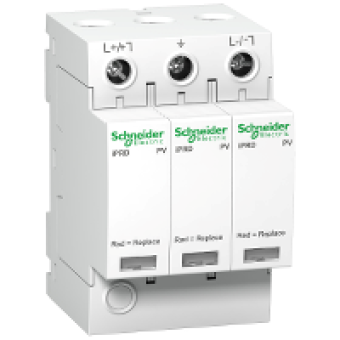

A9L40271 - iPRD-DC 40r 800PV modular surge arrester - 2P - 840VDC - with remote transfert, Schneider Electric
- Product Code: A9L40271
- Brand: Schneider Electric
- Availability: To be confirmed
- € 52.38 Ex Tax:
MAIN CHARACTERISTICS
range of product
IPRD DC
range of product
ACTI 9
product name
ACTI 9 IPRD PV DC
device short name
IPRD PV DC
product or component type
SURGE ARRESTER PLUGGABLE CTRG
poles description
2P
output type
CONTACT VOLT-FREE
signal contacts composition
1 SD 1 C O
surge arrester type
ELEC DISTRIBUTION NETWORK
COMPLEMETARY CHARACTERISTICS
surge arrester class type
TYPE 2
surge arrester technology
MOV
[Ue] rated operational voltage
800 V +- 10 DC
[In] nominal discharge current
15 KA
[Imax] maximum discharge current
40 KA
[Ucpv] maximum continuous operating voltage
DIFFERENTIAL MODE 800 V L+L-
[Up] voltage protection level
3 KV TYPE 2 DIFFERENTIAL MODE L+L-
disconnector device type
associated circuit breaker iC60H 50 A Icu 15 kA curve C
local signalling
FLAG COLOR WHITERED
signalling circuit voltage
AC : 250 V 50/60 Hz
signalling output current
0.25 A
mounting mode
CLIP-ON
mounting support
DIN RAIL
9 mm pitches
6
height
85 MM
width
54 MM
depth
70 MM
product weight
0.315 KG
colour
WHITE RAL 9003
response time
<= 25 NS
connections - terminals
TUNNEL TYPE TERMINAL DOWNSIDE 2.5...35 MM
tightening torque
2.5 N.M
compatibility code
IPRD DC 40R 600PV
