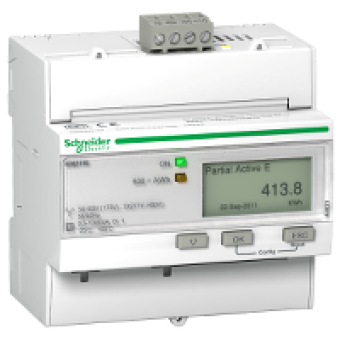

A9MEM3150 - iEM3150 energy meter - 63 A - Modbus, Schneider Electric
- Product Code: A9MEM3150
- Brand: Schneider Electric
- Availability: To be confirmed
- € 131.19 Ex Tax:
MAIN CHARACTERISTICS
range
ACTI 9
range of product
ACTI 9 IEM3000
device short name
IEM3150
product or component type
ENERGY METER
market segment
NO RENDITION
COMPLEMETARY CHARACTERISTICS
poles description
1P+N
type of measurement
ACTIVE ENERGY
device application
SUB BILLING
accuracy class
ACTIVE ENERGY CLASS 1 ACCORDING TO IEC 62053-21
input type
direct input
[In] rated current
63 A
rated voltage
100...277 V
network frequency
50 HZ
technology type
ELECTRONIC
display type
LCD DISPLAY
sampling rate
32 SAMPLES CYCLE
measurement current
0...63 A
maximum value measured
99999999.9 KWH
communication port protocol
MODBUS RTU 9.6 19.2 AND 38.4 KBAUDS EVENODD OR NONE
communication port support
SCREW TERMINAL BLOCK RS485
local signalling
power ON : indicator light (green)
number of inputs
0
number of outputs
0
mounting mode
CLIP-ON
mounting support
DIN RAIL
connections - terminals
SCREW TERMINALS 16 MM
overvoltage category
III
standards
IEC 61036
product certifications
CE - IEC 61010 SAFETY
market segment
RESIDENTIAL
compatibility code
IEM3150
