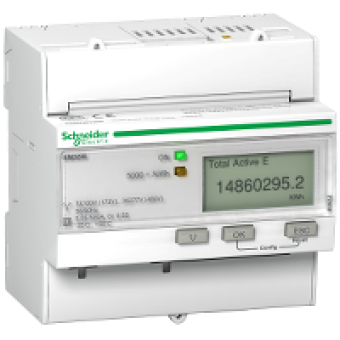

A9MEM3200 - iEM3200 energy meter - CT, Schneider Electric
- Product Code: A9MEM3200
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
ACTI 9
range of product
ACTI 9 IEM3000
device short name
IEM3200
product or component type
ENERGY METER
market segment
NO RENDITION
COMPLEMETARY CHARACTERISTICS
poles description
1P+N
type of measurement
ACTIVE ENERGY
device application
SUB BILLING
accuracy class
ACTIVE ENERGY CLASS 0.5S ACCORDING TO IEC 62053-22
input type
EXTERNAL CT 1 A OR 5 A
[In] rated current
1 A
rated voltage
100...277 V
network frequency
50 HZ
technology type
ELECTRONIC
display type
LCD DISPLAY
sampling rate
32 SAMPLES CYCLE
measurement current
1...32767000 MA
maximum value measured
99999999 MWH
communication port protocol
-
communication port support
-
local signalling
power ON : indicator light (green)
number of inputs
0
number of outputs
0
mounting mode
CLIP-ON
mounting support
DIN RAIL
connections - terminals
CURRENT CIRCUIT SCREW TERMINALS 6 MM
overvoltage category
III
standards
IEC 61036
product certifications
CE - IEC 61010 SAFETY
market segment
RESIDENTIAL
compatibility code
IEM3200
