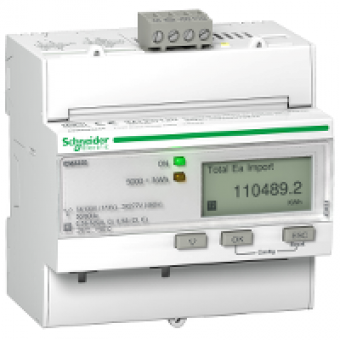

A9MEM3255 - iEM3255 energy meter - CT - Modbus - 1 digital I - 1 digital O - multi-tariff, Schneider Electric
- Product Code: A9MEM3255
- Brand: Schneider Electric
- Availability: To be confirmed
- € 191.40 Ex Tax:
MAIN CHARACTERISTICS
range
ACTI 9
range of product
ACTI 9 IEM3000
device short name
IEM3255
product or component type
ENERGY METER
market segment
NO RENDITION
COMPLEMETARY CHARACTERISTICS
poles description
1P+N
type of measurement
ACTIVE AND REACTIVE ENERGY
metering type
ACV+RCTV+APRNT NRG 4 QUADRANT
device application
SUB BILLING
accuracy class
ACTIVE ENERGY CLASS 0.5S ACCORDING TO IEC 62053-22
input type
EXTERNAL CT 1 A OR 5 A
[In] rated current
1 A
rated voltage
100...277 V
network frequency
50 HZ
technology type
ELECTRONIC
display type
LCD DISPLAY
sampling rate
32 SAMPLES CYCLE
measurement current
1...32767000 MA
maximum value measured
99999999 MWH
tariff input
4 TARIFF
communication port protocol
MODBUS RTU 9.6 19.2 AND 38.4 KBAUDS EVENODD OR NONE
communication port support
SCREW TERMINAL BLOCK RS485
local signalling
power ON : indicator light (green)
number of inputs
1 DIGITAL 0...5 V11...40 V 24 V DC
number of outputs
1 DIGITAL STATIC
output voltage
5...40 V DC < 50 MA
mounting mode
CLIP-ON
mounting support
DIN RAIL
connections - terminals
CURRENT CIRCUIT SCREW TERMINALS 6 MM
overvoltage category
III
standards
IEC 61036
product certifications
CE - IEC 61010 SAFETY
market segment
RESIDENTIAL
compatibility code
IEM3255
