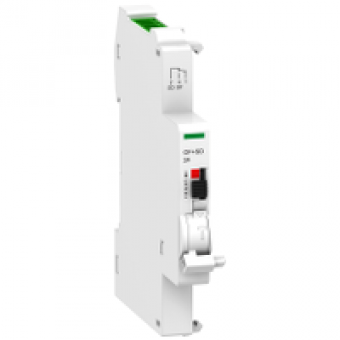

A9N26899 - Acti 9 - low level auxiliary contact OF+SD - for C60 C120 C60H-DC DPN ID, Schneider Electric
- Product Code: A9N26899
- Brand: Schneider Electric
- Availability: To be confirmed
- € 19.09 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
C120
product or component type
OC+FAULT CONTACT W PLC ITF
device short name
OF+SD 24
signal contacts composition
1 NO + 1 NC
[Ie] rated operational current
2...100 mA at 24 V DC ± 20%
9 mm pitches
1
COMPLEMETARY CHARACTERISTICS
range compatibility
ACTI 9 DPN VIGI
[Ui] rated insulation voltage
500 V CONFORMING TO IEC 60664-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60664-1
local signalling
MECHANICAL INDICATOR
mounting mode
FIXED
mounting support
DIN RAIL
height
84 MM
width
9 MM
depth
73 MM
product weight
28 G
colour
WHITE
electrical durability
20000 CYCLES CONFORMING TO IEC 60947-5-4
connections - terminals
SPRING-LOADED TERMINAL TI24 IN TOP 1 CABLES 0.5...1.5 MM RIGID
wire stripping length
10 MM
product compatibility
WITH PLC
market segment
RESIDENTIAL
