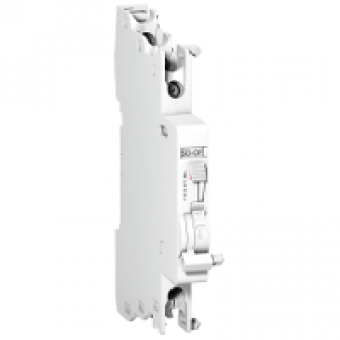

A9N26929 - Acti 9 - Auxiliary contact OC plus 1 SD and OF ac dc, Schneider Electric
- Product Code: A9N26929
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
C120
product or component type
DOUBLE OC OR FAULT CONTACT
device short name
OF AND OF OR OF AND SD
signal contacts composition
2 C O
[Ie] rated operational current
1 A at 130 V DC
9 mm pitches
1
COMPLEMETARY CHARACTERISTICS
range compatibility
ACTI 9 DPN VIGI
mounting mode
FIXED
mounting support
DIN RAIL
height
90 MM
width
9 MM
depth
73.5 MM
colour
WHITE
connections - terminals
CLAMP TERMINAL IN BOTTOM 2 CABLE S 1.5 MM FLEXIBLE
wire stripping length
9 MM
tightening torque
1 N.M
product compatibility
C40
market segment
RESIDENTIAL
The Schneider Electric A9N26929 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
