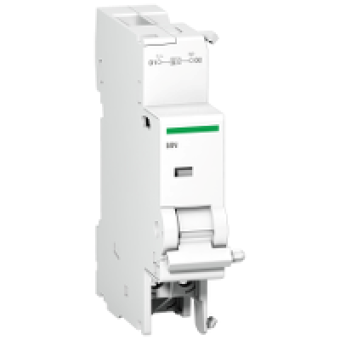

A9N26961 - Voltage release MN 48Vac dc, Schneider Electric
- Product Code: A9N26961
- Brand: Schneider Electric
- Availability: To be confirmed
- € 47.49 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
C120
product or component type
UNDERVOLTAGE RELEASE
device short name
MN
[Uc] control circuit voltage
48 V AC 5060 HZ
control type
STANDARD
9 mm pitches
2
product compatibility
C40
COMPLEMETARY CHARACTERISTICS
range compatibility
ACTI 9 ACTI 9 IDPN
local signalling
ACTION INDICATOR
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
height
82.5 MM
width
18 MM
depth
68 MM
product weight
66 G
colour
WHITE
connections - terminals
SCREW CLAMP TERMINAL BOTTOM 2 CABLES 1.5 MM FLEXIBLE
wire stripping length
9 mm bottom
tightening torque
1 N.m bottom
market segment
RESIDENTIAL
