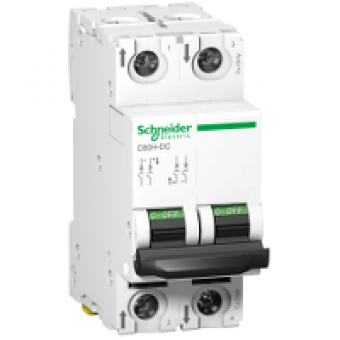

A9N61528 - miniature circuit breaker - C60H - 2 poles - 10 A - C curve, Schneider Electric
- Product Code: A9N61528
- Brand: Schneider Electric
- Availability: To be confirmed
- € 15.29 Ex Tax:
MAIN CHARACTERISTICS
range of product
C60
range
ACTI 9
product name
ACTI 9 C60H-DC
product or component type
MINIATURE CIRCUIT-BREAKER
device short name
C60H-DC
device application
DISTRIBUTION
poles description
2P
number of protected poles
2
[In] rated current
10 A AT 25 DC
network type
DC
trip unit technology
THERMAL-MAGNETIC
curve code
C
breaking capacity code
H
breaking capacity
ICU 10 KA AT 440 V DC CONFORMING TO EN 60947-2
suitability for isolation
YES CONFORMING TO IEC 60947-2
COMPLEMETARY CHARACTERISTICS
network frequency
50 60 HZ
[Ue] rated operational voltage
500 V DC
[Ics] rated service breaking capacity
15 KA 75 X ICU AT 220 V DC CONFORMING TO EN 60947-2
[Ui] rated insulation voltage
500 V DC CONFORMING TO IEC 60947-2
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO EN 60947-2
contact position indicator
YES
control type
TOGGLE
local signalling
ON OFF INDICATION
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
comb busbar and distribution block compatibility
STANDARD TOP OR BOTTOM
9 mm pitches
4
product weight
0.256 KG
colour
WHITE
mechanical durability
20000 CYCLES
electrical durability
3000 CYCLES - 500 V DC
provision for padlocking
PADLOCKABLE
locking options description
IN POSITION O
tightening torque
2.5 N.M TOP OR BOTTOM POWER CIRCUIT
earth-leakage protection
WITHOUT
product compatibility
C60 ACCESSORIES
market segment
RESIDENTIAL
compatibility code
C60H DC
