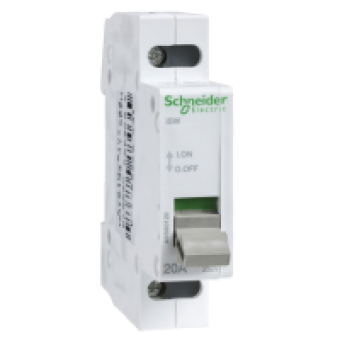

A9S60220 - switch Acti9 iSW - 2 poles - 20 A - 415V, Schneider Electric
- Product Code: A9S60220
- Brand: Schneider Electric
- Availability: To be confirmed
- € 6.14 Ex Tax:
MAIN CHARACTERISTICS
range of product
ISW 20..32
range
ACTI 9
product name
ACTI 9 ISW
product or component type
SWITCH DISCONNECTOR
device short name
ISW
device application
CONTROL
poles description
2P
utilisation category
AC-22A
suitability for isolation
YES
COMPLEMETARY CHARACTERISTICS
[Ie] rated operational current
20 A 415 V AC 5060 HZ
[Ue] rated operational voltage
415 V AC 5060 HZ
[Ui] rated insulation voltage
500 V AC 5060 HZ CONFORMING TO ENIEC 60669-2-4
[Uimp] rated impulse withstand voltage
4 KV
control type
TOGGLE
local signalling
ON OFF INDICATION
contact position indicator
YES
mounting mode
FIXED
mounting support
DIN RAIL
connection pitch
NO RENDITION
9 mm pitches
2
height
77 MM
width
18 MM
depth
75.5 MM
colour
WHITE
mechanical durability
300000 CYCLES
electrical durability
30000 CYCLES
connections - terminals
TUNNEL TYPE TERMINALS RIGID
wire stripping length
9 MM
tightening torque
1.2 N.M
market segment
RESIDENTIAL
compatibility code
ISW
