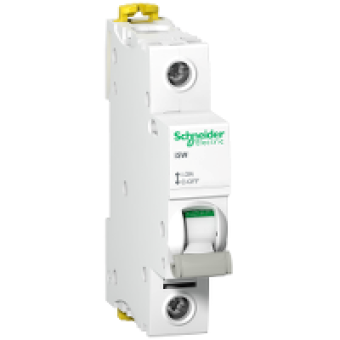

A9S65192 - switch disconnector iSW - 1P - 125 A - 240 V, Schneider Electric
- Product Code: A9S65192
- Brand: Schneider Electric
- Availability: To be confirmed
- € 14.25 Ex Tax:
MAIN CHARACTERISTICS
range of product
ISW 40..125
range
ACTI 9
product name
ACTI 9 ISW
product or component type
SWITCH DISCONNECTOR
device short name
ISW
device application
CONTROL
poles description
1P
utilisation category
AC-22A
suitability for isolation
YES
COMPLEMETARY CHARACTERISTICS
[Ie] rated operational current
125 A 240 V AC 5060 HZ
[Ue] rated operational voltage
240 V AC 5060 HZ
[Icm] rated short-circuit making capacity
5 KA SWITCH-DISCONNECTOR ALONE
[Icw] rated short-time withstand current
1500 A
[Ui] rated insulation voltage
250 V AC 5060 HZ
[Uimp] rated impulse withstand voltage
6 KV
control type
TOGGLE
local signalling
ON OFF INDICATION
contact position indicator
YES
mounting mode
FIXED
mounting support
DIN RAIL
comb busbar and distribution block compatibility
top or bottom : YES
connection pitch
NO RENDITION
9 mm pitches
2
height
85 MM
width
18 MM
depth
78.5 MM
colour
WHITE
mechanical durability
20000 CYCLES
electrical durability
2500 CYCLES
connections - terminals
TUNNEL TYPE TERMINALS TOP OR BOTTOM RIGID
wire stripping length
9 MM
tightening torque
3.5 N.M
market segment
RESIDENTIAL
compatibility code
ISW
