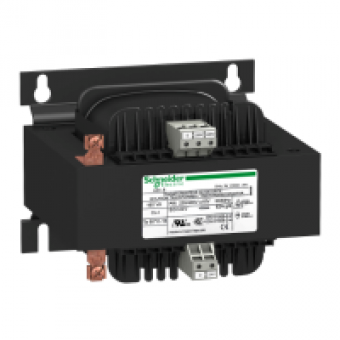

ABL6TS40B - voltage transformer - 230..400 V - 1 x 24 V - 400 VA, Schneider Electric
- Product Code: ABL6TS40B
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO OPTIMUM
product or component type
SAFETY + ISOLATION TRANSFORMER
rated power in VA
400 VA
input voltage
230 V AC SINGLE PHASE TERMINALS N-L1
output voltage
24 V AC
secondary winding
SINGLE
protective cover
WITHOUT
ambient air temperature for operation
-20...50 C
COMPLEMETARY CHARACTERISTICS
input voltage limits
207..253 V
network frequency limits
47...63 HZ
input voltage tolerance
+ -15 V
efficiency
92
power dissipation in W
34.8 W
output sustained overvoltage
4 NO LOAD HOT STATE
voltage drop at rated load
0.7
no load losses
12.4 W
short-circuit voltage
4.50 PT
output protection type
AGAINST OVERLOAD PROTECTION TECHNOLOGY EXTERNAL
connections - terminals
SCREW TYPE TERMINALS FOR INPUT CONNECTION CONNECTION CAPACITY 5 X 4 MM AWG 11
marking
CE
fixing mode
BY 4 SCREWS SCREWS = 5.8 MM ON VERTICAL PANEL OPERATING POSITION HORIZONTAL
operating altitude
3000 M
electrical insulation class
CLASS B
product weight
6.5 KG
compatibility code
ABL6T
