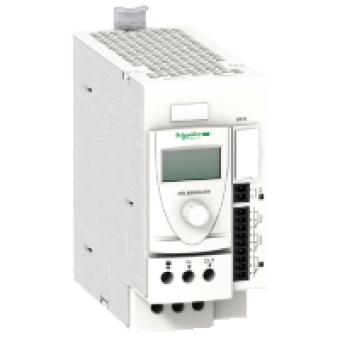

ABL8BBU24200 - battery control module - 24..28.8 V DC - 24 V - 20 A - for regulated SMPS, Schneider Electric
- Product Code: ABL8BBU24200
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO
product or component type
BATTERY CONTROL MODULE
input voltage
24..28.8 V DC
output voltage
UBATTERY-0.5 V IN BATTERY MODE DC
maximum output current
20 A
COMPLEMETARY CHARACTERISTICS
input voltage limits
22..30 V
current consumption
0.6 A ON LOAD
power dissipation in W
< 7 W
activation threshold
ADJUSTABLE 22..36 V
number of output channels
1
holding current
1 A
output protection type
AGAINST OVERLOAD PROTECTION TECHNOLOGY 1.5 X IN
connections - terminals
REMOVABLE SCREW TERMINAL BLOCK FOR DIAGNOSTIC RELAY CONNECTION CAPACITY 1 X 0.75 MM
fixing mode
BY CLIPS ON 35 MM SYMMETRICAL DIN RAIL OPERATING POSITION HORIZONTAL
operating altitude
2000 M
marking
CE
name of test
ELECTROSTATIC DISCHARGES CONFORMING TO ENIEC 61000-4-2
local signalling
1 CO RELAY FUNCTION ALARM STATUS
product weight
0.5 KG
holding time
0.5 S
holding solution
USE OF BATTERY MODULES
compatibility code
ABL8B
