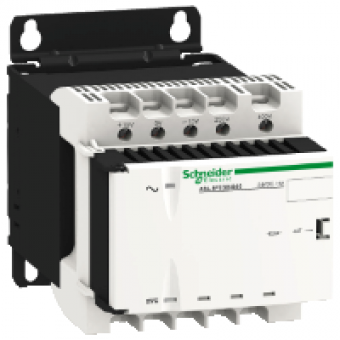

ABL8FEQ24005 - rectified and filtered power supply - 1 or 2-phase - 400 V AC - 24 V - 0.5 A, Schneider Electric
- Product Code: ABL8FEQ24005
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO RECTIFIED
product or component type
POWER SUPPLY
power supply type
RECTIFIED AND FILTERED
rated power in W
12 W
input voltage
230 V AC SINGLE PHASE TERMINALS N-L1
output voltage
24 V DC
power supply output current
0.5 A
operating position
HORIZONTAL AT 40 DC
COMPLEMETARY CHARACTERISTICS
input voltage limits
207..253 V
network frequency limits
47...63 HZ
input voltage tolerance
+ -15 V
inrush current
0.97 A AT 400 V
cos phi
0.656 AT 230 V
efficiency
71
power dissipation in W
3.48 W
residual ripple
<= 1200 MV
holding time
17 MS
output protection type
AGAINST OVERLOAD AND SHORT-CIRCUITS PROTECTION TECHNOLOGY INTERNAL FUSE 0.5 A 5 X 20 MM T CURVE
connections - terminals
SCREW TYPE TERMINALS FOR INPUT CONNECTION CONNECTION CAPACITY 5 X 2.5...5 X 4 MM AWG 14...AWG 11
marking
CE
fixing mode
BY CLIPS ON 35 MM SYMMETRICAL DIN RAIL
output coupling
PARALLEL
operating altitude
3000 M
name of test
CONDUCTEDRADIATED EMISSIONS CONFORMING TO EN 55011 CLASS B
status LED
1 LED GREEN FOR OUTPUT VOLTAGE
depth
124 MM
height
108 MM
width
87 MM
product weight
1.28 KG
anti-harmonic filter
LOW FREQUENCY HARMONIC CURRENT
compatibility code
ABL8F
