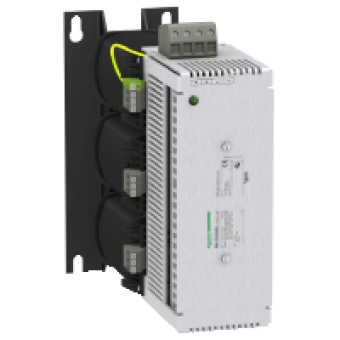

ABL8TEQ24400 - rectified and filtered power supply - 3-phase - 400 V AC - 24 V - 40 A, Schneider Electric
- Product Code: ABL8TEQ24400
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO RECTIFIED
product or component type
POWER SUPPLY
power supply type
RECTIFIED AND FILTERED
rated power in W
960 W
input voltage
400 V AC THREE PHASE TERMINALS L1 L2 L3
output voltage
24 V DC
power supply output current
40 A
operating position
HORIZONTAL AT 40 DC
COMPLEMETARY CHARACTERISTICS
input voltage limits
360..440 V
network frequency limits
47...63 HZ
input voltage tolerance
+ -20 V
inrush current
30 A AT 400 V
cos phi
0.857 AT 400 V
efficiency
78
power dissipation in W
211 W
holding time
5 MS
output protection type
AGAINST OVERVOLTAGE PROTECTION TECHNOLOGY 2 J PEAK LIMITER
connections - terminals
SCREW TYPE TERMINALS FOR INPUT GROUND CONNECTION CONNECTION CAPACITY 1 X 2.5...1 X 4 MM AWG 14...AWG 11
marking
CE
fixing mode
BY 4 SCREWS
output coupling
PARALLEL
operating altitude
3000 M
name of test
CONDUCTEDRADIATED EMISSIONS CONFORMING TO EN 55011 CLASS B
status LED
1 LED GREEN FOR OUTPUT VOLTAGE
depth
140 MM
height
310 MM
width
310 MM
product weight
17.5 KG
anti-harmonic filter
LOW FREQUENCY HARMONIC CURRENT
compatibility code
ABL8T
