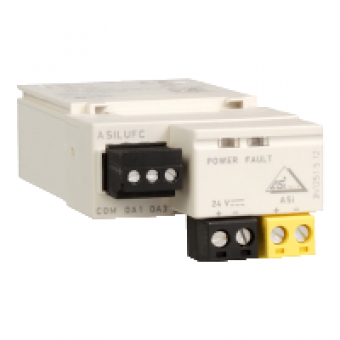

ASILUFC5 - AS-Interface communication module - for TeSys U - 24 V DC, Schneider Electric
- Product Code: ASILUFC5
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS U
range
TESYS
device short name
ASILUF
product or component type
COMMUNICATION MODULE
product compatibility
LUCA
device application
COMMUNICATION
range compatibility
TESYS TESYS U LUB NON REVERSING POWER BASE
COMPLEMETARY CHARACTERISTICS
main function available
AS-INTERFACE COMMUNICATION MOD
mounting mode
PLUG IN
mounting location
FRONT SIDE
bus type
AS-INTERFACE
communication port protocol
PROFIBUS DP
addressing
31 SLAVES
current consumption
200 MA AT 24 V OUTPUT
switching current capacity
500 MA AT 24 V AGAINST SHORT-CIRCUITS SOLID STATE
local signalling
2 LEDS FRONT PANEL
connection pitch
3.81 MM OUTPUT
connections - terminals
input : screw clamp terminals 1 cable 0.2...1.5 mm² - cable stiffness: flexible - without cable end
tightening torque
input : 0.5...0.6 N.m - with screwdriver 3.5 mm
