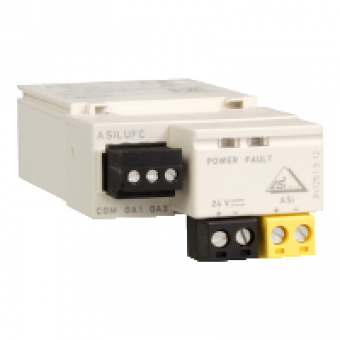

ASILUFC51 - communication module - for TeSys U, Schneider Electric
- Product Code: ASILUFC51
- Brand: Schneider Electric
- Availability: To be confirmed
- € 73.75 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS U
range
TESYS
device short name
ASILUL
product or component type
COMMUNICATION MODULE
product compatibility
LUCA
device application
COMMUNICATION
range compatibility
TESYS TESYS U LUB NON REVERSING POWER BASE
COMPLEMETARY CHARACTERISTICS
main function available
COMMUNICATION MODULE
mounting mode
PLUG IN
mounting location
FRONT SIDE
physical interface
7.A.7.E
bus type
AS-INTERFACE
addressing
62 SLAVES
return time
10 MS
current consumption
200 MA AT 24 V OUTPUT
number of outputs
2 DEDICATED TO STARTER-CONTROLLER COIL OPERATION
local signalling
2 LEDS FRONT PANEL
connection pitch
3.81 MM OUTPUT
connections - terminals
input : screw clamp terminals 1 cable 0.2...1.5 mm² - cable stiffness: flexible - without cable end
tightening torque
input : 0.5...0.6 N.m - with screwdriver 3.5 mm
