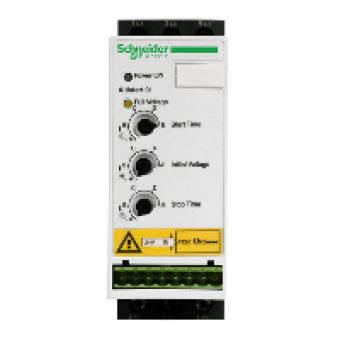

ATSU01N212LT - soft starter for asynchronous motor - ATSU01 - 12 A - 200..480V - 2.2..5.5 KW, Schneider Electric
- Product Code: ATSU01N212LT
- Brand: Schneider Electric
- Availability: To be confirmed
- € 153.18 Ex Tax:
MAIN CHARACTERISTICS
range of product
ALTISTART U01 AND TESYS U
product or component type
SOFT STARTER
product destination
ASYNCHRONOUS MOTORS
product specific application
SIMPLE MACHINE
device short name
ATSU01
network number of phases
3 PHASES
[Us] rated supply voltage
200...480 V - 10...10
motor power kW
2.2 KW 3 PHASES 230 V
motor power hp
3 HP 3 PHASES 230 V
IcL starter rating
12 A
utilisation category
AC-53B ENIEC 60947-4-2
current consumption
65 MA
type of start
START WITH VOLTAGE RAMP
power dissipation in W
1.5 W AT FULL LOAD AND AT END OF STARTING
COMPLEMETARY CHARACTERISTICS
assembly style
WITH HEATSINK
function available
INTEGRATED BYPASS
supply voltage limits
180...528 V
supply frequency
50..60 HZ - 5..5
network frequency
47.5..63 HZ
output voltage
<= POWER SUPPLY VOLTAGE
[Uc] control circuit voltage
24 V DC +- 10
starting time
1 S 100
deceleration time symb
ADJUSTABLE FROM 1 TO 10 S
starting torque
30..80 PT OF TQ CON ON LINE
discrete input type
LOGIC LI1 LI2 BOOST STOP RUN AND BOOST ON START-UP FUNCTIONS <= 8 MA 27 KOHM
discrete input voltage
24..40 V
input output isolation
GALVANIC BTWN POWER+CONTROL
discrete input logic
POSITIVE LI1 LI2 BOOST < 5 V AND <= 0.2 MA > 13 V >= 0.5 MA
discrete output current
2 A DC-13
discrete output type
OPEN COLLECTOR LOGIC LO1 END OF STARTING SIGNAL
discrete output voltage
24 V 6...30 V OPEN COLLECTOR LOGIC
minimum switching current
10 MA 6 V DC RELAY OUTPUTS
maximum switching current
2 A 30 V DC INDUCTIVE COS PHI = 0.5 20 MS RELAY OUTPUTS
maximum switching voltage
440 V RELAY OUTPUTS
display type
1 LED GREEN STARTER POWERED UP
tightening torque
0.5 N.M
electrical connection
4 MM SCREW CLAMP TERMINAL RIGID 1 1...10 MM AWG 8 POWER CIRCUIT
marking
CE
operating position
VERTICAL + -10 DEGREE
height
234 MM
width
45 MM
depth
150 MM
product weight
0.34 KG
Motor power range AC-3
2.2...3 KW AT 200...240 V 3 PHASES
motor starter type
SOFT STARTER
