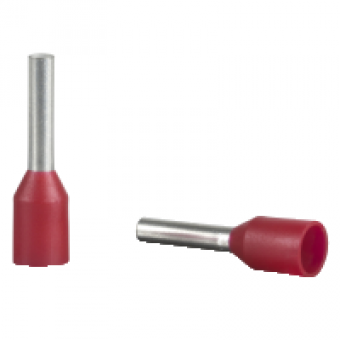

AZ5CE010D - Cable end insulated 1mm² medium size red dispenser-pack DIN, Schneider Electric
- Product Code: AZ5CE010D
- Brand: Schneider Electric
- Availability: To be confirmed
- € 0.03 Ex Tax:
MAIN CHARACTERISTICS
range of product
LINERGY
product or component type
CABLE END
cable end size
MEDIUM
standards
DIN 46228 4
type of packing
DISPENSER PACK
quantity per set
5 SETS OF 200
cable cross section
1 MM
COMPLEMETARY CHARACTERISTICS
cable end type
SINGLE CONDUCTOR
additional information
WITHOUT MARKER TAG HOLDER
colour
RED
bezel material
HALOGEN-FREE PLASTIC
tube material
COPPER CONFORMING TO ISO 1337
number of cables
1
AWG gauge
AWG 18
bezel size
DM 3.5 MM
tube diameter
1.7 MM
length
14 MM
tube length
8 MM
CAD overall width
3 MM
CAD overall height
3 MM
CAD overall depth
14 MM
product weight
0.165 KG
