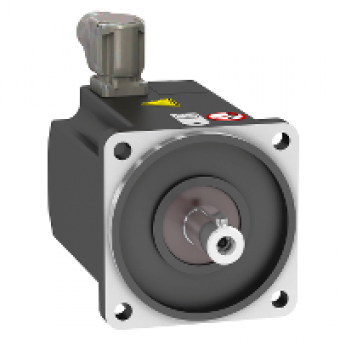

• BMP1002F3NA2A - synchronous motor - BMP - 480 VAC - 1.5 kW - IP65 - IEC, Schneider Electric

BMP1002F3NA2A - synchronous motor - BMP - 480 VAC - 1.5 kW - IP65 - IEC, Schneider Electric

  • € 598.20 Ex Tax:

MAIN CHARACTERISTICS
product or component type
SYNCHRONOUS MOTOR
device short name
BMP
maximum mechanical speed
3600 RPM
nominal output power
1500 W WITH DRIVE ATV32 AT 1.5 KW 400 V THREE PHASE
nominal torque
4.77 N.M WITH DRIVE ATV32 AT 1.5 KW 400 V THREE PHASE
nominal speed
3000 RPM WITH DRIVE ATV32 AT 1.5 KW 400 V THREE PHASE
product compatibility
VARIABLE SPEED DRIVE ATV32 AT 1.5 KW 400 V THREE PHASE
shaft end
KEYED
IP degree of protection
IP65 STANDARD
holding brake
WITHOUT
mounting support
INTERNATIONAL STANDARD FLANGE
electrical connection
ROTATABLE RIGHT-ANGLED CONN
COMPLEMETARY CHARACTERISTICS
range compatibility
ALTIVAR 32
[Us] rated supply voltage
480 V
network number of phases
THREE PHASE
maximum current Irms
6.2 A WITH DRIVE ATV32 AT 1.5 KW 400 V THREE PHASE
nominal operating frequency
250 HZ WITH DRIVE ATV32 AT 1.5 KW 400 V THREE PHASE
minimum operating frequency
25 HZ WITH DRIVE ATV32 AT 1.5 KW 400 V THREE PHASE
maximum operating frequency
300 HZ WITH DRIVE ATV32 AT 1.5 KW 400 V THREE PHASE
shaft diameter
19 MM
shaft length
40 MM
key width
6 MM
motor flange size
100 MM
torque constant
1.56 N.MA AT 40 C
number of motor poles
5
number of motor stacks
2
rotor inertia
6.28 KG.CM
stator resistance
1.75 OHM AT 40 C
stator inductance
7.65 MH FOR Q-AXIS WINDING AT 40 C
maximum radial force Fr
990 N AT 1000 RPM
maximum axial force Fa
0.2 X FR
type of cooling
NATURAL CONVECTION
length
160.6 MM
centring collar diameter
95 MM
centring collar depth
3.5 MM
number of mounting holes
4
mounting holes diameter
9 MM
circle diameter of the mounting holes
115 MM
product weight
4.92 KG
The Schneider Electric BMP1002F3NA2A is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
