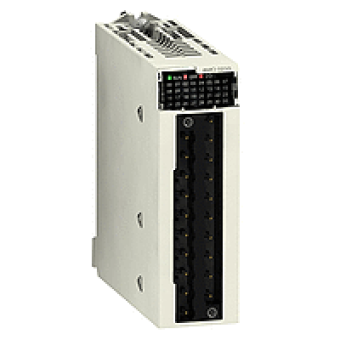

BMXAMO0210 - analog output module M340 - 2 outputs, Schneider Electric
- Product Code: BMXAMO0210
- Brand: Schneider Electric
- Availability: To be confirmed
- € 287.06 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON X80
product or component type
ANALOG OUTPUT MODULE
electrical connection
1 CONNECTOR 20 WAYS
Isolation between channels
ISOLATED
COMPLEMETARY CHARACTERISTICS
measurement error
<= 0.25 OF FULL SCALE 0...60 C
temperature drift
40 PPMDC +- 10 V
recalibration
FACTORY CALIBRATED
isolation voltage
1400 V DC BETWEEN CHANNELS AND GROUND
detection type
OPEN CIRCUIT 0..20 MA
load impedance ohmic
<= 600 OHM 0..20 MA
output level
HIGH LEVEL
analogue output number
2
analogue output type
CURRENT 0..20 MA
analogue output resolution
15 BITS + SIGN
supply
INTERNAL POWER SUPPLY VIA RACK
conversion time
<= 1 MS
maximum conversion value
+- 11.25 V +- 10 V +- 10 V
fallback mode
CONFIGURABLE
status LED
1 LED GREEN RUN
product weight
0.144 KG
current consumption
150 MA AT 3.3 V DC
