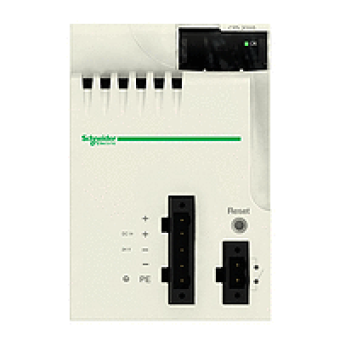

BMXCPS2010 - power supply module X80 - 24 V DC - 16.8 W, Schneider Electric
- Product Code: BMXCPS2010
- Brand: Schneider Electric
- Availability: To be confirmed
- € 184.12 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON X80
product or component type
POWER SUPPLY MODULE
backplane compatibility
NOT COMPATIBLE WITH BMEXBP..02
primary voltage
24 V ISOLATED
supply circuit type
DC
secondary power
16.8 W 24 V DC IO MODULE POWER SUPPLY AND PROCESSOR
COMPLEMETARY CHARACTERISTICS
primary voltage limit
18..31.2 V
input current
1 A 24 V
inrush current
30 A 24 V
I²t on activation
<= 0.6 A.S 24 V
It on activation
<= 0.15 A.S 24 V
protection type
INTERNAL FUSE NOT ACCESSIBLE PRIMARY CIRCUIT
current at secondary voltage
0.7 A 24 V DC IO MODULE POWER SUPPLY AND PROCESSOR
power dissipation in W
<= 8.5 W
status LED
1 LED GREEN RACK VOLTAGE OK
control type
RESET PUSHBUTTON COLD RESTART
electrical connection
1 CONNECTOR 2 PINS ALARM RELAY
max cable distance between devices
20 M POWER SUPPLY CABLE COPPER 1.5 MM
insulation resistance
>= 10 MOHM PRIMARYGROUND
product weight
0.29 KG
The Schneider Electric BMXCPS2010 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
