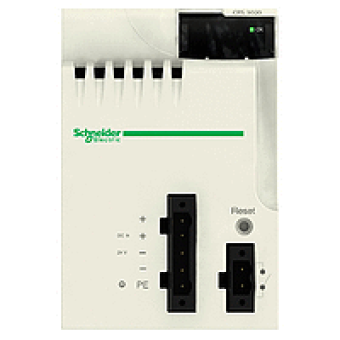

BMXCPS3020H - power supply module X80 - 24..48 V isolated DC - for severe environments, Schneider Electric
- Product Code: BMXCPS3020H
- Brand: Schneider Electric
- Availability: To be confirmed
- € 468.00 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON X80
product or component type
POWER SUPPLY MODULE
backplane compatibility
NOT COMPATIBLE WITH BMEXBP..02
product specific application
FOR SEVERE ENVIRONMENTS
primary voltage
24..48 V ISOLATED
supply circuit type
DC
secondary power
15 W 3.3 V DC AT 0...60 C IO MODULE LOGIC POWER SUPPLY
COMPLEMETARY CHARACTERISTICS
primary voltage limit
18..62.4 V
input current
0.83 A 48 V
inrush current
30 A 24 V
I²t on activation
<= 1 A.S 24 V
It on activation
<= 0.2 A.S 24 V
protection type
INTERNAL FUSE NOT ACCESSIBLE PRIMARY CIRCUIT
current at secondary voltage
1.3 A 24 V DC IO MODULE POWER SUPPLY AND PROCESSOR
power dissipation in W
<= 8.5 W
status LED
1 LED GREEN RACK VOLTAGE OK
control type
RESET PUSHBUTTON COLD RESTART
electrical connection
1 CONNECTOR 2 PINS ALARM RELAY
max cable distance between devices
10 M POWER SUPPLY CABLE COPPER 1.5 MM
insulation resistance
>= 10 MOHM PRIMARYGROUND
product weight
0.34 KG
