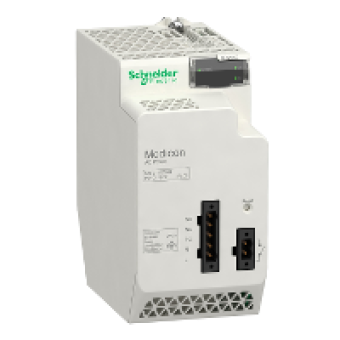

BMXCPS4002 - power supply module X80 - 100..240 V AC, Schneider Electric
- Product Code: BMXCPS4002
- Brand: Schneider Electric
- Availability: To be confirmed
- € 666.61 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON X80
product or component type
POWER SUPPLY MODULE
backplane compatibility
ALL BACKPLANE
advanced diagnostics available via network
TEMPERATURE SENSING
primary voltage
100..240 V
supply circuit type
AC
secondary power
18 W 3.3 V DC AT 0...60 C IO MODULE LOGIC POWER SUPPLY
COMPLEMETARY CHARACTERISTICS
primary voltage limit
85..264 V
network frequency
50 60 HZ
network frequency limits
47...63 HZ
apparent power
0.07 KVA
input current
0.52 A 240 V
inrush current
<= 30 A 120 V
I²t on activation
<= 1 A.S 120 V
It on activation
<= 0.05 A.S 120 V
protection type
INTERNAL FUSE NOT ACCESSIBLE PRIMARY CIRCUIT
current at secondary voltage
1.3 A 24 V DC IO MODULE POWER SUPPLY AND PROCESSOR
power dissipation in W
<= 8.5 W
status LED
1 LED GREEN PRESENCE OF VOLTAGES OK
control type
RESET PUSHBUTTON COLD RESTART
electrical connection
1 CONNECTOR 2 PINS ALARM RELAY
insulation resistance
>= 100 MOHM PRIMARYGROUND
product weight
0.51 KG
The Schneider Electric BMXCPS4002 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
