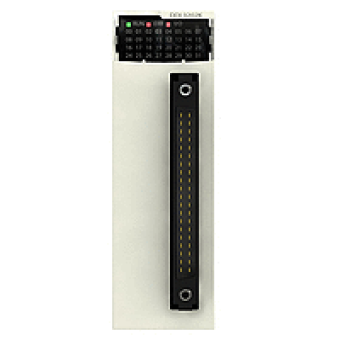

BMXDDI3202K - discrete input module M340 - 32 inputs - 24 V DC positive, Schneider Electric
- Product Code: BMXDDI3202K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 266.28 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON X80
product or component type
DISCRETE INPUT MODULE
electrical connection
40-WAY CONNECTOR
discrete input number
32
discrete input type
isolated
input type
CURRENT SINK LOGIC POSITIVE
discrete input voltage
24 V DC POSITIVE
discrete input current
2.5 MA
input compatibility
WITH 2-WIRE3-WIRE PROXIMITY SENSORS CONFORMING TO IEC 60947-5-2
COMPLEMETARY CHARACTERISTICS
sensor power supply
19..30 V
voltage state 1 guaranteed
>= 11 V
current state 1 guaranteed
>= 2 MA
voltage state 0 guaranteed
<= 5 V
current state 0 guaranteed
<= 1.5 MA
input impedance
9600 OHM
insulation resistance
> 10 MOHM 500 V DC
power dissipation in W
<= 3.9 W
DC typical filtering time
4 MS
DC maximum filtering time
7 MS
paralleling of inputs
NO
typical current consumption
140 mA at 3.3 V DC
MTBF reliability
696320 H
protection type
1 EXTERNAL FUSE PER GROUP OF CHANNEL 0.5 A FAST BLOW
voltage detection threshold
< 14 V DC SENSOR FAULT
status LED
1 LED green for module operating (RUN)
product weight
0.112 KG
