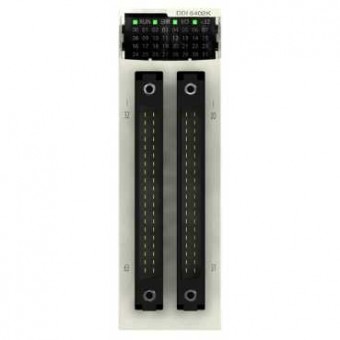

BMXDDI6402K - discrete input module M340 - 64 inputs - 24 V DC positive, Schneider Electric
- Product Code: BMXDDI6402K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 417.74 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON X80
product or component type
DISCRETE INPUT MODULE
electrical connection
TWO 40-WAY CONNECTORS
discrete input number
64
discrete input type
isolated
input type
CURRENT SINK LOGIC POSITIVE
discrete input voltage
24 V DC POSITIVE
discrete input current
1 MA
COMPLEMETARY CHARACTERISTICS
sensor power supply
19..30 V
voltage state 1 guaranteed
>= 15 V
current state 1 guaranteed
>= 1 MA
voltage state 0 guaranteed
<= 5 V
current state 0 guaranteed
<= 0.5 MA
input impedance
24000 OHM
insulation resistance
> 10 MOHM 500 V DC
power dissipation in W
<= 4.3 W
DC typical filtering time
4 MS
DC maximum filtering time
7 MS
paralleling of inputs
NO
typical current consumption
200 mA at 3.3 V DC
MTBF reliability
362681 H
protection type
1 EXTERNAL FUSE PER GROUP OF CHANNEL 0.5 A FAST BLOW
voltage detection threshold
< 14 V DC SENSOR FAULT
status LED
1 LED green for +32 channels indicator
product weight
0.145 KG
