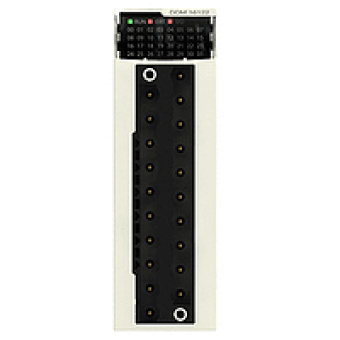

BMXDDM16022 - discrete I/O module M340 - 8 inputs - 24 V DC - 8 outputs - solid state, Schneider Electric
- Product Code: BMXDDM16022
- Brand: Schneider Electric
- Availability: To be confirmed
- € 185.40 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON X80
product or component type
DISCRETE I O MODULE
electrical connection
20-WAY CONNECTOR
discrete input number
8
input type
CURRENT SINK LOGIC POSITIVE
discrete input voltage
24 V DC POSITIVE
discrete input current
3.5 MA
input compatibility
WITH 2-WIRE3-WIRE PROXIMITY SENSORS CONFORMING TO IEC 60947-5-2
discrete output number
8
discrete output type
SOLID STATE
discrete output voltage
24 V 19..30 V DC
discrete output current
0.5 A
COMPLEMETARY CHARACTERISTICS
sensor power supply
19..30 V
voltage state 1 guaranteed
>= 11 V
current state 1 guaranteed
>= 3 MA
voltage state 0 guaranteed
<= 5 V
current state 0 guaranteed
<= 1.5 MA
current per channel
<= 0.625 A
current per module
<= 5 A
leakage current
<= 0.5 MA AT STATE 0
[Ures] residual voltage
<= 1.2 V AT STATE 1
input impedance
6800 OHM
insulation resistance
> 10 MOHM 500 V DC
power dissipation in W
<= 3.7 W
DC typical filtering time
4 MS
DC maximum filtering time
7 MS
response time on output
1.2 MS
paralleling of outputs
YES 2 MAX
typical current consumption
100 mA at 3.3 V DC
current consumption
<= 111 MA AT 3.3 V DC
MTBF reliability
447581 H
protection type
1 EXTERNAL FUSE PER GROUP OF INPUT CHANNEL 0.5 A FAST BLOW
output overload protection
W ELNC CB 1.5 IN < ID < 2 IN
output overvoltage protection
WITH TRANSIL DIODE
output short-circuit protection
WITH 2 A EXTERNAL FUSE
reverse polarity protection
REVERSE MOUNTED DIODE
voltage detection threshold
< 14 V DC PREACTUATOR FAULT
tungsten load
<= 6 W
switching frequency
0.5 LI2 HZ
overload time
<= 15 MS
load impedance ohmic
<= 48 OHM
status LED
1 LED green for module operating (RUN)
product weight
0.115 KG
The Schneider Electric BMXDDM16022 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
