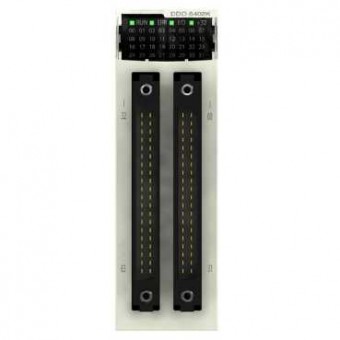

BMXDDO6402K - discrete output module M340 - 64 outputs - solid state - 24 V DC positive, Schneider Electric
- Product Code: BMXDDO6402K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 503.64 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON X80
product or component type
DISCRETE OUTPUT MODULE
electrical connection
TWO 40-WAY CONNECTORS
discrete output number
64 CONFORMING TO ENIEC 61131-2
discrete output type
SOLID STATE
discrete output logic
POSITIVE
discrete output voltage
24 V 19..30 V DC
discrete output current
0.1 A
output compatibility
IEC 61131-2 TYPE 3 DC INPUT
COMPLEMETARY CHARACTERISTICS
current per channel
<= 0.125 A
current per module
<= 3.8 A AT <= 60 DC
insulation resistance
> 10 MOHM 500 V DC
power dissipation in W
<= 6.85 W
response time on output
1.2 MS
paralleling of outputs
YES 3 MAX
typical current consumption
240 mA at 3.3 V DC
MTBF reliability
173792 H
protection type
REVERSE POLARITY PROTECTION
output overload protection
W ELNC CB 0.125 A
output overvoltage protection
WITH TRANSIL DIODE
output short-circuit protection
WITH 2 A EXTERNAL FUSE
reverse polarity protection
REVERSE MOUNTED DIODE
voltage detection threshold
< 14 V DC PREACTUATOR FAULT
tungsten load
<= 1.2 W
switching frequency
0.5 LI2 HZ
overload time
<= 15 MS
load impedance ohmic
<= 220 OHM
status LED
1 LED green for +32 channels indicator
product weight
0.15 KG
