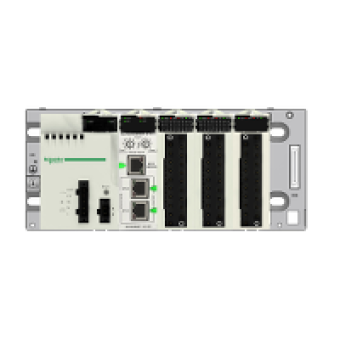

BMXERT1604T - multifunction input module Modicon M340 - 16 I - 24/24..125 V, Schneider Electric
- Product Code: BMXERT1604T
- Brand: Schneider Electric
- Availability: To be confirmed
- € 430.75 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON M340 AUTO PLATFORM
product or component type
MULTIFUNCTION INPUT MODULE
COMPLEMETARY CHARACTERISTICS
function available
HOT SWAP
data recording
1 MS TIME STAMPS
time synchronisation protocol
DCF77
group of channels
4 GROUPS OF 4 INPUTS FOR PROCESS INPUT
[Us] rated supply voltage
24 V DC VOLTAGE RANGE 19...30 V
switching voltage
125 V AT 1.3 MA FOR PROCESS INPUT
power consumption in W
4 W FOR PROCESS INPUT
current consumption
30 MA AT 24 V DC
isolation voltage
2500 V DURATION = 60 S BUS TO DISCRETE INPUT
anti bounce filtering
CONFIGURABLE FROM 0 TO 255 MS
input state
INVERSION CONFIGURABLE
sampling duration
0.5 MS
acquisition time
1 MS
local signalling
1 LED - GREEN FOR FIRMWARE AND MODULE RUN RUN
marking
CE
width
32 MM
height
100 MM
depth
86 MM
