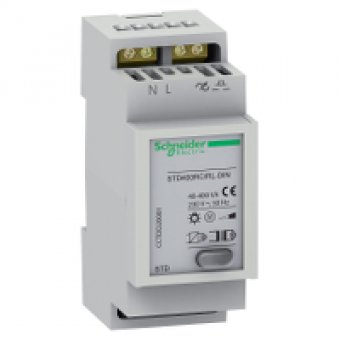

CCTDD20001 - STD - DIN - remote control dimmer - 400 W, Schneider Electric
- Product Code: CCTDD20001
- Brand: Schneider Electric
- Availability: To be confirmed
- € 83.16 Ex Tax:
MAIN CHARACTERISTICS
range of product
STD
range of product
ACTI 9
product name
ACTI 9 STD
product or component type
REMOTE CONTROL DIMMER
device short name
STD
product compatibility
POWER REGULATORS DESIGNED
function available
AUTOMATIC LOAD TYPE DETECTION
COMPLEMETARY CHARACTERISTICS
device application
BUILDING
load type
HALOGEN LAMP 230 V AC 40...400 W
control type
LOCAL CONTROL PUSH-BUTTON
power consumption in VA
0.8 VA
thermal losses
3 W
[Ue] rated operational voltage
230 V +- 10 AC 50 HZ
protection type
ELECTRONIC OVERLOAD PROTECTION
mounting support
DIN RAIL
9 mm pitches
4
connected auxiliaries
MAXIMUM 25 AUXILIARY PUSH-BUTTONS WITHOUT LIGHT INDICATION DISTANCE < 50 M
connections - terminals
SCREW TERMINALS 2 CABLES <= 4 MM TOP
height
85 MM
width
36 MM
depth
62 MM
product weight
80 G
parallel control unit
NO
compatibility code
STD400RC RL DIN
market segment
SMALL COMMERCIAL
