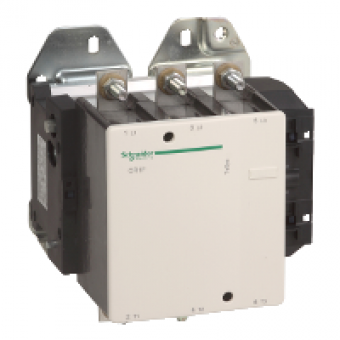

CR1F500M7 - TeSys F magnetic latching contactor - 3P(3 NO) - 500 A - 220...230 V AC/DC coil, Schneider Electric
- Product Code: CR1F500M7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,272.02 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product name
TESYS F
product or component type
MAGNETIC LATCHING CONTACTOR
device short name
CR1F
device application
CONTROL
contactor application
MOTOR CONTROL
utilisation category
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
1000 V AC 25...200 Hz
[Ie] rated operational current
500 A <= 40 C AT <= 440 V AC AC-3
motor power kW
250 KW 400 V AC 5060 HZ AC-4
control circuit type
AC 50...400 HZ
[Uc] control circuit voltage
220..230 V AC 50..400 HZ
Irms rated making capacity
5000 A
rated breaking capacity
5000 A AT 220...440 V
[Icw] rated short-time withstand current
4200 A <= 40 C 1 S
associated fuse rating
500 A AM AT <= 440 V
average impedance
0.18 MOHM AT 50 HZ - ITH 700 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60158-1
power dissipation per pole
45 W AC-3
connections - terminals
LUGS-RING TERMINALS 2 CABLES 240 MM
tightening torque
35 N.M
operating time
40..80 MS LATCHING
mechanical durability
1 MCYCLES
operating rate
120 CYCH AT <= 40 C
COMPLEMETARY CHARACTERISTICS
control circuit voltage limits
0.85...1.1 UC LATCHING
average consumption
1800 VA AC 50...400 HZ LATCHING
compatibility code
CR1F
