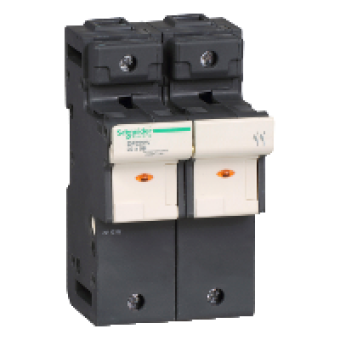

DF222V - TeSyS fuse-disconnector 2P 125A - fuse size 22 x 58 mm - blown fuse indicator, Schneider Electric
- Product Code: DF222V
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS FUSE DISCONNECTOR
range
TESYS
product name
TESYS DF
product or component type
FUSE-DISCONNECTOR
device short name
DF22
poles description
2P
COMPLEMETARY CHARACTERISTICS
product compatibility
FUSE CARTRIDGE
mounting support
RAIL
mounting position
VERTICAL +- 23
control type
TOGGLE
[Ie] rated operational current
125 A FOR POWER CIRCUIT
[Uimp] rated impulse withstand voltage
8 KV
fire resistance
960 C CONFORMING TO IEC 60695-2-1
[Ipk] rated peak withstand current
19 KA WITH TUBULAR LINKS CONFORMING TO IEC 60269-1
short-circuit withstand
120 KA 400 V CONFORMING TO IEC 60947-3
local signalling
BLOWN FUSE INDICATION
fuse size
22 X 58 MM
fuse type
AM
[Ui] rated insulation voltage
690 V FOR POWER CIRCUIT AC
connections - terminals
1 SOLID CABLES 2.5...35 MM ON SCREW CLAMP TERMINALS FOR POWER CIRCUIT
tightening torque
4 N.m power circuit : on screw clamp terminals
quantity per set
SET OF 3
compatibility code
DF22
