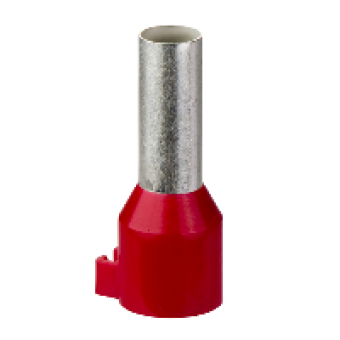

DZ5CA102D - Cable end insulated for clip-in marker 10mm² medium size red 1 bag DIN, Schneider Electric
- Product Code: DZ5CA102D
- Brand: Schneider Electric
- Availability: To be confirmed
- € 0.06 Ex Tax:
MAIN CHARACTERISTICS
range of product
LINERGY
product or component type
CABLE END
cable end size
MEDIUM
standards
DIN 46228 4
type of packing
BAG
quantity per set
SET OF 100
cable cross section
10 MM
COMPLEMETARY CHARACTERISTICS
cable end type
SINGLE CONDUCTOR
additional information
F ADDITIONAL MARKER TAG HOLDER
colour
RED
bezel material
HALOGEN-FREE PLASTIC
tube material
COPPER CONFORMING TO ISO 1337
number of cables
1
AWG gauge
AWG 8
bezel size
DM 8.4 MM
tube diameter
4.9 MM
length
22 MM
tube length
12 MM
CAD overall width
8 MM
CAD overall height
10 MM
CAD overall depth
22 MM
product weight
0.06 KG
