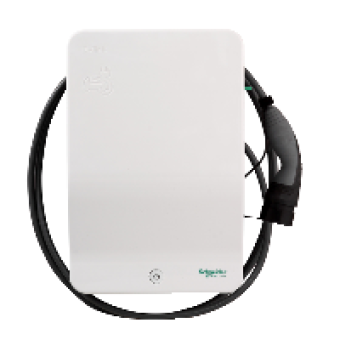

EVH2S3P0CK - EVlink Wallbox - 3.7 kW - attached cable T2 - charging station, Schneider Electric
- Product Code: EVH2S3P0CK
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
EVLINK
product name
EVLINK WALLBOX
product or component type
CHARGING STATION
device short name
EVH2
poles description
1P + N
mounting mode
WALL-MOUNTED
offer type
STANDARD
Max power
3.7 KW 16 A
socket outlet type
CABLE T2
Number of charge point
1
Connection to the vehicle
ATTACHED CABLE T2 4 M
access control system
KEY
COMPLEMETARY CHARACTERISTICS
rated supply voltage
220...240 V AC 5060 HZ
earthing system
TN
number of inputs
1
input type
CONTACT FOR POWER LIMITATION
control type
1 WHITE BUTTON FUNCTION STOPRESTART
local signalling
1 MULTI-COLOUR LED FUNCTION STATUS INDICATION
height
480 MM
width
330 MM
depth
170 MM
product weight
7.5 KG
colour
WHITE RAL 9003
standards
IEC 61851 1
product certifications
CE
