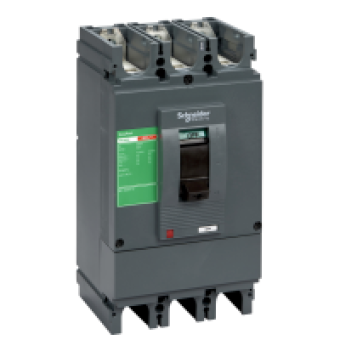

EZC400N3320N - circuit breaker Easypact EZC400N - TMD - 320 A - 3 poles 3d, Schneider Electric
- Product Code: EZC400N3320N
- Brand: Schneider Electric
- Availability: To be confirmed
- € 381.55 Ex Tax:
MAIN CHARACTERISTICS
market segment
SMALL COMMERCIAL
COMPLEMETARY CHARACTERISTICS
range
EASYPACT
range of product
EASYPACT
product name
EASYPACT EZC
product or component type
CIRCUIT BREAKER
device short name
EASYPACT EZC400N
circuit breaker name
EASYPACT EZC400N
device application
DISTRIBUTION
poles description
3P
protected poles description
3T
network type
AC
network frequency
50 60 HZ
[In] rated current
400 A 40 DC
[Ui] rated insulation voltage
690 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-2
[Ue] rated operational voltage
250 V DC CONFORMING TO IEC 60947-2
breaking capacity code
N
breaking capacity
HIC 25 KA AT 277480 V AC 5060 HZ CONFORMING TO NEMA AB1
[Ics] rated service breaking capacity
ICS 18 KA 440 V AC 5060 HZ CONFORMING TO IEC 60947-2
suitability for isolation
YES CONFORMING TO IEC 60947-2
utilisation category
A
trip unit name
TM-D
trip unit technology
THERMAL-MAGNETIC
trip unit rating
350 A 50 DC
protection type
OVERLOAD PROTECTION
pollution degree
3 CONFORMING TO IEC 60947
