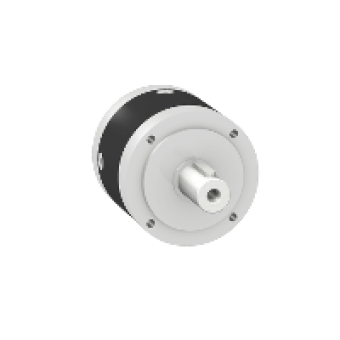

GBX060003K - gearbox straight teeth GBX - Ø 60 mm - reduction 3:1 < 10 arc.min - 28 N.m, Schneider Electric
- Product Code: GBX060003K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 224.79 Ex Tax:
MAIN CHARACTERISTICS
range compatibility
LEXIUM ILA
product or component type
PLANETARY GEARBOX
gear box type
STRAIGHT TEETH
device short name
GBX
product compatibility
BMH 70 MM 1 MOTOR STACKS
gearbox external diameter
60 MM
reduction ratio
3 1
COMPLEMETARY CHARACTERISTICS
torsional backlash
< 10 ARC.MIN
torsional rigidity
2.3 N.M ARCMIN
housing colour
BLACK
housing material
BLACK ANODIZED ALUMINIUM
shaft material
C 45
additional information
LUBRICATED LIFE
service life in hours
30000 H AT 100 RPM AT 30 DC
mounting position
ANY POSITION
efficiency
96
maximum radial force Fr
340 N AT 100 RPM FORCE APPLIED AT MID-DISTANCE FROM OUTPUT SHAFT DURING 30000 HOUR AT 30 C
maximum axial force Fa
450 N AT 100 RPM DURING 30000 HOUR AT 30C
moment of inertia
0.135 KG.CM
continuous output torque
28 N.M AT 100 RPM AT 30 DC
maximum output torque
45 N.M AT 100 RPM AT 30 DC
product weight
0.9 KG
no load running torque
0.05 N.M
reduction ratio
3
compatibility code
GBX
