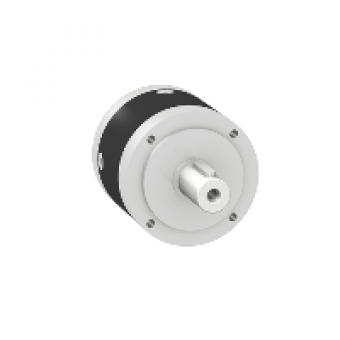

GBX080010K - gearbox straight teeth GBX - Ø 80 mm - reduction 10:1 < 7 arc.min - 38 N.m, Schneider Electric
- Product Code: GBX080010K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 259.37 Ex Tax:
MAIN CHARACTERISTICS
range compatibility
LEXIUM 32
product or component type
PLANETARY GEARBOX
gear box type
STRAIGHT TEETH
device short name
GBX
product compatibility
BMH 70 MM 3 MOTOR STACKS
gearbox external diameter
80 MM
reduction ratio
10 1
COMPLEMETARY CHARACTERISTICS
torsional backlash
< 7 ARC.MIN
torsional rigidity
6 N.M ARCMIN
housing colour
BLACK
housing material
BLACK ANODIZED ALUMINIUM
shaft material
C 45
additional information
LUBRICATED LIFE
service life in hours
30000 H AT 100 RPM AT 30 DC
mounting position
ANY POSITION
efficiency
96
maximum radial force Fr
650 N AT 100 RPM FORCE APPLIED AT MID-DISTANCE FROM OUTPUT SHAFT DURING 30000 HOUR AT 30 C
maximum axial force Fa
900 N AT 100 RPM DURING 30000 HOUR AT 30C
moment of inertia
0.39 KG.CM
continuous output torque
38 N.M AT 100 RPM AT 30 DC
maximum output torque
61 N.M AT 100 RPM AT 30 DC
product weight
2.1 KG
no load running torque
0.1 N.M
reduction ratio
10
compatibility code
GBX
