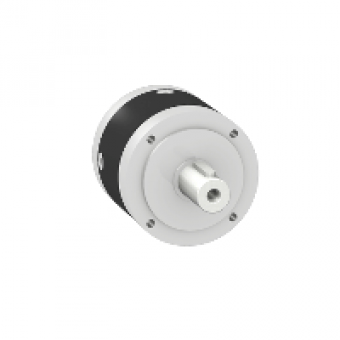

GBX120003K - gearbox straight teeth GBX - Ø 120 mm - reduction 3:1 < 7 arc.min - 115 N.m, Schneider Electric
- Product Code: GBX120003K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 524.15 Ex Tax:
MAIN CHARACTERISTICS
range compatibility
LEXIUM SD3
product or component type
PLANETARY GEARBOX
gear box type
STRAIGHT TEETH
device short name
GBX
product compatibility
BMI 100 MM 2 MOTOR STACKS
gearbox external diameter
120 MM
reduction ratio
3 1
COMPLEMETARY CHARACTERISTICS
torsional backlash
< 7 ARC.MIN
torsional rigidity
12 N.M ARCMIN
housing colour
BLACK
housing material
BLACK ANODIZED ALUMINIUM
shaft material
C 45
additional information
LUBRICATED LIFE
service life in hours
30000 H AT 100 RPM AT 30 DC
mounting position
ANY POSITION
efficiency
96
maximum radial force Fr
1500 N AT 100 RPM FORCE APPLIED AT MID-DISTANCE FROM OUTPUT SHAFT DURING 30000 HOUR AT 30 C
maximum axial force Fa
2100 N AT 100 RPM DURING 30000 HOUR AT 30C
moment of inertia
2.63 KG.CM
continuous output torque
115 N.M AT 100 RPM AT 30 DC
maximum output torque
184 N.M AT 100 RPM AT 30 DC
product weight
6 KG
no load running torque
0.3 N.M
reduction ratio
3
compatibility code
GBX
